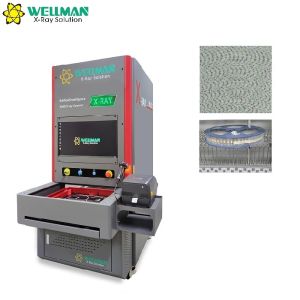

139μM Pixel X Ray Counter SMD Component Counting Machine Automatic

Brand Name : WELLMAN

Model Number : XC-01

Certification : CE, FDA

Place of Origin : CHINA

MOQ : 1

Price : 22000-32000 USD

Payment Terms : T/T

Delivery Time : 10 days

Packaging Details : Wooden case

X-ray tube voltage : 80KV

Type : Closed,microfocus

Max tube voltage : 80kv

Effective area : 430mm*430mm

Pixel size : 139μm

Resolution : 3072*3072

Contact Now

WELLMAN Microfocus X-Ray Parts Counter XC-01
Key Advantages
  • 80kV enclosed X-ray tube: Extended service life and maintenance-free operation
  • 17-inch Super Definition Digital Flat Panel Detector (FPD): High-clarity Imaging Performance
  • Ultrafast counting: Processes four 7" parts or one 15" (380mm) parts in less than 10 seconds
  • Large capacity: Supports max 17" (430mm) parts or tray with moisture barrier bag
  • Automatic operations: Simultaneous code scanning and counting, plus label printing capability
  • Smart mode handling: No need for switching between single parts mode and multi parts mode
  • Advanced tracing: Work order number function with counting record inquiry and statistics
  • AI deep learning algorithm: Permanently updated for free, compatible with MES, ERP, WMS systems
Technical Specifications
X-ray Source
Type Integrated, microfocus
Max tube voltage 80kV
Max tube current 700μA
Focal spot size 30μm
Flat Panel Detector
Type Super definition digital FPD
Effective area 430mm * 430mm
Pixel size 139μm
Resolution 3072 * 3072
Parts/Tray Counting
Max size 17" (430mm)
Max thickness 88mm
Min parts size 01005
Speed 7-10s
Accuracy 01005 ≥ 99.98%, 0201 & above ≥ 99.99%
Equipment
Dimensions 1000mm (L) * 1300mm (W) * 1820mm (H)
Weight 580kg
Power supply AC110-220V 50/60HZ
Max power 800W
Industrial PC I7 CPU, 16G RAM, 256G SSD+4T HDD
Displayer 24" HDMI LCD
Safety Features
Radiation leakage No leakage, international standard: ≤1μSv/h
Back door safety interlock Automatic X-ray power off when door opens
Anti-pinch protection Safety light curtain covers entire drawer
Emergency stop Front-mounted emergency power off button
Performance Metrics
Parts Size Component Size Quantity Accuracy Speed
7" (180mm) 01005 40000 99.98% 9-10s
7" (180mm) 0201 20000 99.99% 8-9s
7" (180mm) 0402 10000 99.99% 7-8s
7" (180mm) 0603 5000 99.99% 7-8s
10" (254mm) 1206 5000 99.99% 7-8s
15" (380mm) 1206 10000 99.99% 7-8s
AI Deep Learning Technology
Our counting software leverages robust artificial intelligence to automatically identify components, eliminating the need for manual algorithm binding. The system acquires knowledge from counted component data, including:
  • Aspect ratio assessment
  • Image deformation tracking
  • Component corner angle measurement
  • Slope analysis between components
Counting accuracy improves continuously as the system processes more components. The technology easily adapts to similar components or larger trays.
139μM Pixel X Ray Counter SMD Component Counting Machine Automatic
Cloud Database Integration
Every X-ray counter connects to our cloud database for:
  • Automatic data and image uploads
  • Continuous algorithm optimization by engineers
  • Regular database updates for all customers
The system's counting accuracy approaches 100% over time, with expanding component type coverage. When encountering new components, the system leverages existing database knowledge for immediate high-efficiency processing.
139μM Pixel X Ray Counter SMD Component Counting Machine Automatic
Working Principle
139μM Pixel X Ray Counter SMD Component Counting Machine Automatic
Sample Images
139μM Pixel X Ray Counter SMD Component Counting Machine Automatic 139μM Pixel X Ray Counter SMD Component Counting Machine Automatic 139μM Pixel X Ray Counter SMD Component Counting Machine Automatic
