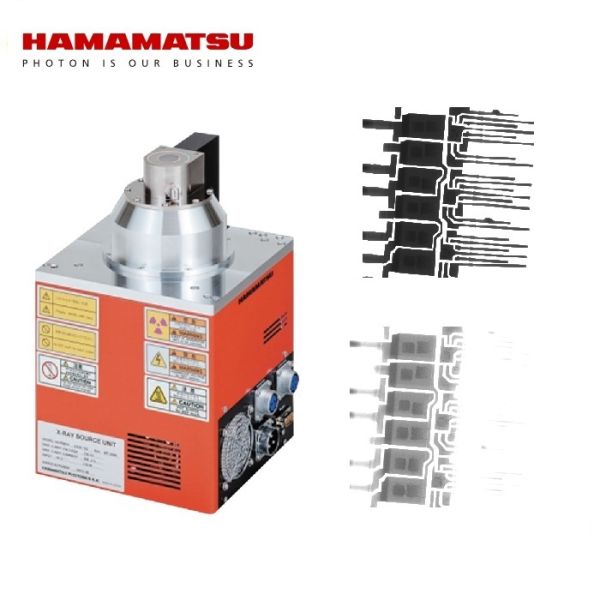

Hamamatsu X-Ray Source: NDT/X-ray CT for Electronic Components & PCB

Product Categories

SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Hamamatsu XRay Source NDTXray CT for Electronic Components amp PCB
Brand: Hamamatsu
Price: 1 USD

Brand Name : Hamamatsu

Model Number : L11831-01

Place of Origin : JAPAN

MOQ : 1

Payment Terms : T/T

Packaging Details : carton

Target Material : Tungsten

Communication : Interface: RS-232C(9-pin D-sub connector)

Contact Now

90 kV MICROFOCUS X-RAY SOURCE

Applications

Non-destructive Inspection

X-ray CT

In-line X-ray Inspection

Applicable Objects:

Features

Focal Spot Size: 15 μm (at 90kV)
The focal spot of 5 μm of the sealed type X-ray tube enables sharp and clear X-ray images even at high magnification
Easy Handling: Fully operable from an external PC
Serial Port Control (RS-232C): One package of a sealed type X-ray tube, a high-voltage power supply and a control function

Tube Current Operational Range

Hamamatsu X-Ray Source: NDT/X-ray CT for Electronic Components & PCB

Dimensional Outline

Hamamatsu X-Ray Source: NDT/X-ray CT for Electronic Components & PCB

Specifications

GENERAL
Parameter	Description/Value	Unit
Input Voltage(DC)	+24	V
Power Consumption(Max.)	96	W
Operating Ambient Temperature	+10 to+40	℃
Storage Temperature	0 to +50	℃
Operating and Storage Humidity	Below 85(No Condensation)	%
Weight	Approx.10	kg
Conformance Standards	CE(EMC:IEC61326-1,Group1.Class A)	一
Operation	Continuous	一
High Voltage Power Supply	Built-in	一
X-RAY TUBE
Parameter	Description/Value	Unit
X-ray Tube	Sealed Type	一
X-ray Tube Cooling Method	Convection Cooling	__
X-ray Tube Window Matenal/Thickness	Berylium/150	μm
Target Material	Tungsten	一
Tube Voltage OperationalRange	20 to 90	kV
Tube Current Operational Range①	10 to 200 (8 WMax.)	μA
Maximum Output	8	W
X-ray Focal Spot Size	7(5μm at 4W)	μm
X-ray Beam Angle (Coned)	39	degrees
Focus to Object Distance (FOD)	9.5	mm
X-RAY CONTROL PART
Parameter	Description	Unit
Function	Tube Voltage and Tube Current Preset /Auto Warm-up	一
Protection	Interlock	一
External Control	RS-232C	一
Applicable OS	Windows2000 Professional,XP Professional	__
Computer Operating Conditions	CPU:IntelPentium or Higher,Memory:64MB or More	一
